Description
Custom Die Cut Boxes Shaped Around Your Product
Custom die cut boxes are printed boxes cut from flat board with a custom-made die. The die cuts the outline of the box, scores every fold line and adds features such as windows, handles, locking tabs and inserts in a single pass. Because the shape is designed around your product, custom die cut packaging can fit an unusual size, show the product through a window, lock shut without tape and give your brand a silhouette shoppers remember.
BoxNovo makes custom die cut boxes in paperboard, kraft and corrugated board, printed with your artwork and delivered flat. They cover everything from a simple shaped carton to a die cut mailer, a window box or a fully custom structure, and they sit alongside our full range of custom cardboard boxes.
Custom die cut box specifications
- Structures: any custom shape, plus die cut mailers, window boxes, pillow, gable, hexagon, display, sleeve and lock bottom cartons
- Sizes: made to your product’s length x width x height
- Board: white SBS paperboard, kraft paperboard, recycled board, or E-flute and B-flute corrugated
- Cut features: windows, handles, locking tabs, hang holes, tear strips, vents and fitted inserts
- Printing: full color CMYK or Pantone (PMS) brand colors, outside and inside
- Finishes: matte, gloss, soft touch, spot UV, foil stamping, holographic foil, embossing and debossing
- Tooling: one custom cutting die per design, reused for repeat orders
- Delivery: shipped flat to save storage and freight space
What Is a Die Cut Box and How Is It Made?
A die cut box starts as a flat sheet that is printed, then cut and creased by a die into a single shaped blank. The die is a custom tool built from metal rules: sharp rules cut through the board and slightly dull rules score the fold lines, while foam helps push the board out cleanly (How To Buy Packaging). The blank is then folded, and glued where the style needs it, before it ships flat to you.
- Dieline: a flat drawing of the box showing cut lines, fold lines and glue areas.
- Cutting die: a custom tool is made from the dieline.
- Printing: your artwork is printed on the flat sheet.
- Die cutting: the die cuts the outline, windows and tabs and creases the folds.
- Stripping and gluing: waste is removed and glued styles are folded and glued.
- Delivery: boxes ship flat and are folded up when you pack.
Flatbed, Rotary and Digital Cutting
| Method | How It Works | Best For |
|---|---|---|
| Flatbed die cutting | Printed sheets are pressed against a flat steel rule die | Folding cartons and corrugated boxes; tooling costs less, but it runs slower than rotary |
| Rotary die cutting | A cylindrical die cuts as the material runs through, often inline with printing | Very high volumes, such as large corrugated runs |
| Digital (CAD) cutting | A computer-controlled cutting table follows the dieline with no physical die | Prototypes, samples and very short runs |
Flatbed tools are cheaper but slower, while rotary dies are harder to justify for small runs (Wikipedia: Die cutting). The die is a one-time cost for each design and is reused for repeat orders; if the size or shape changes, a new die is needed.
Die Cut Box Styles
Any box made with a cutting die is a die cut box, so the style can be a familiar structure or a completely new shape.
| Style | Key Die Cut Feature | Best For |
|---|---|---|
| Die cut mailer box | One-piece mailer with a hinged lid and locking tabs; the FEFCO 0427 style needs no glue or tape | E-commerce, subscription boxes, PR kits |

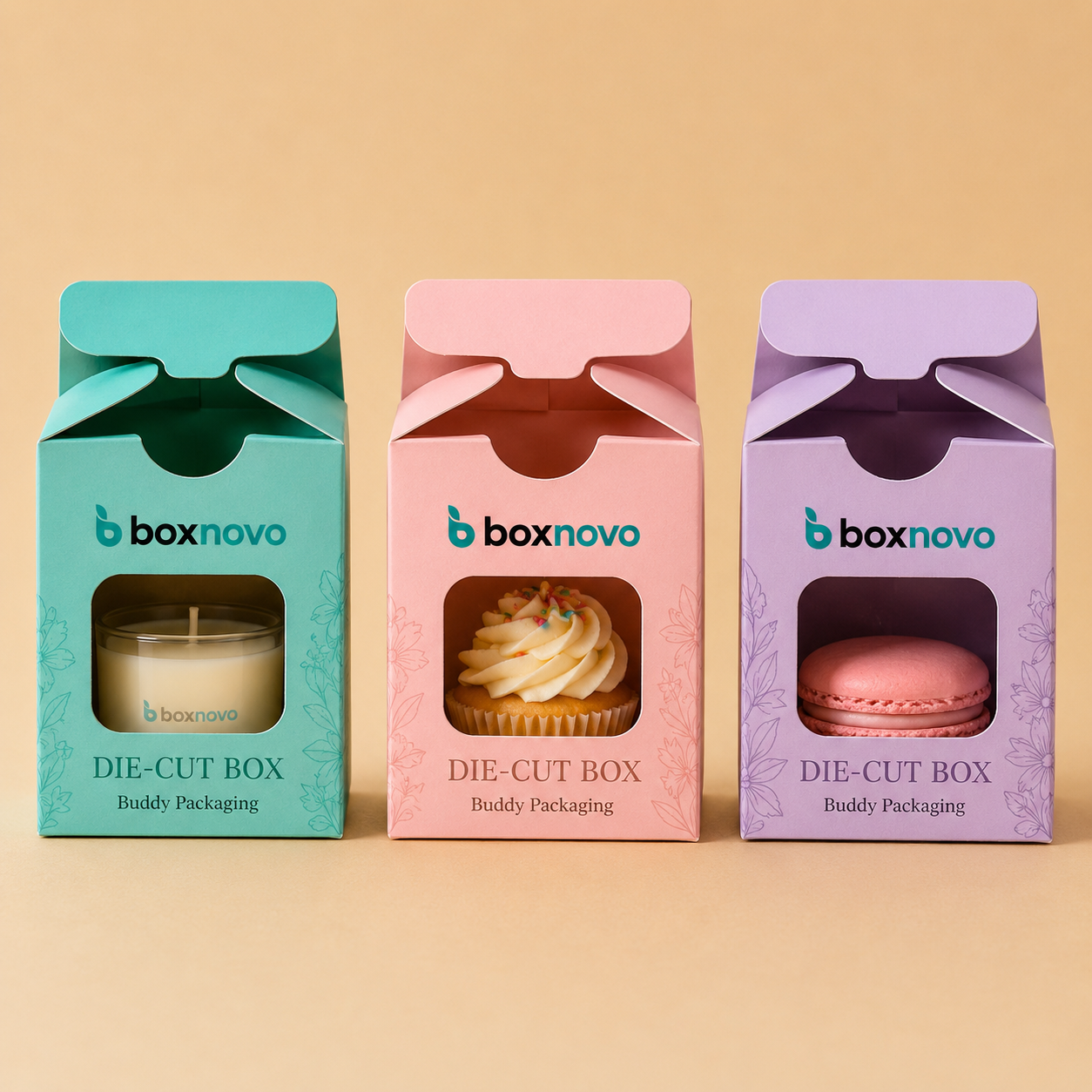

| Die cut window box | Shaped cut-out with clear film | Bakery, cosmetics, candles, toys |
| Gable and handle boxes | Built-in handle and house-shaped top | Treats, favors, gifts to carry |
| Pillow box | Curved ends that fold in to close | Small gifts, jewelry, gift cards, favors |
| Hexagon and custom shapes | Non-rectangular outline | Gift sets, launches, seasonal packaging |

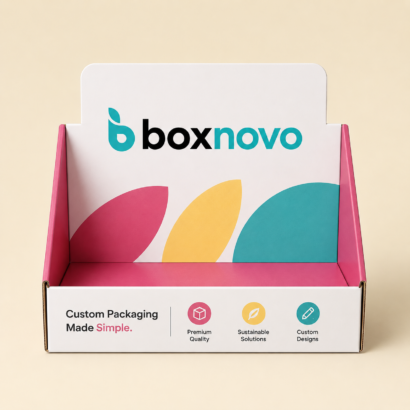

| Counter display box | Tear-away or pop-up header panel | Point-of-sale displays for small products |
| Lock bottom carton | Interlocking 1-2-3 or auto-lock base | Heavier retail products in a folding carton |
| Tuck end carton | Tuck flaps at top and bottom | Lightweight retail products |
| Sleeve and tray | Tray slides into a printed sleeve | Presentation and gift packaging |
The FEFCO 0427 mailer uses ear lock tabs to secure the lid, so it closes without glue or tape (Kilby Packaging). Ready-made versions of these styles include die cut mailer boxes, custom window boxes, printed pillow boxes, custom gable boxes, retail display packaging, 1-2-3 bottom cartons, reverse tuck cartons and sleeve and tray packaging. You can compare every structure on our box styles page.
Custom Cut-Outs, Openings and Add-Ons

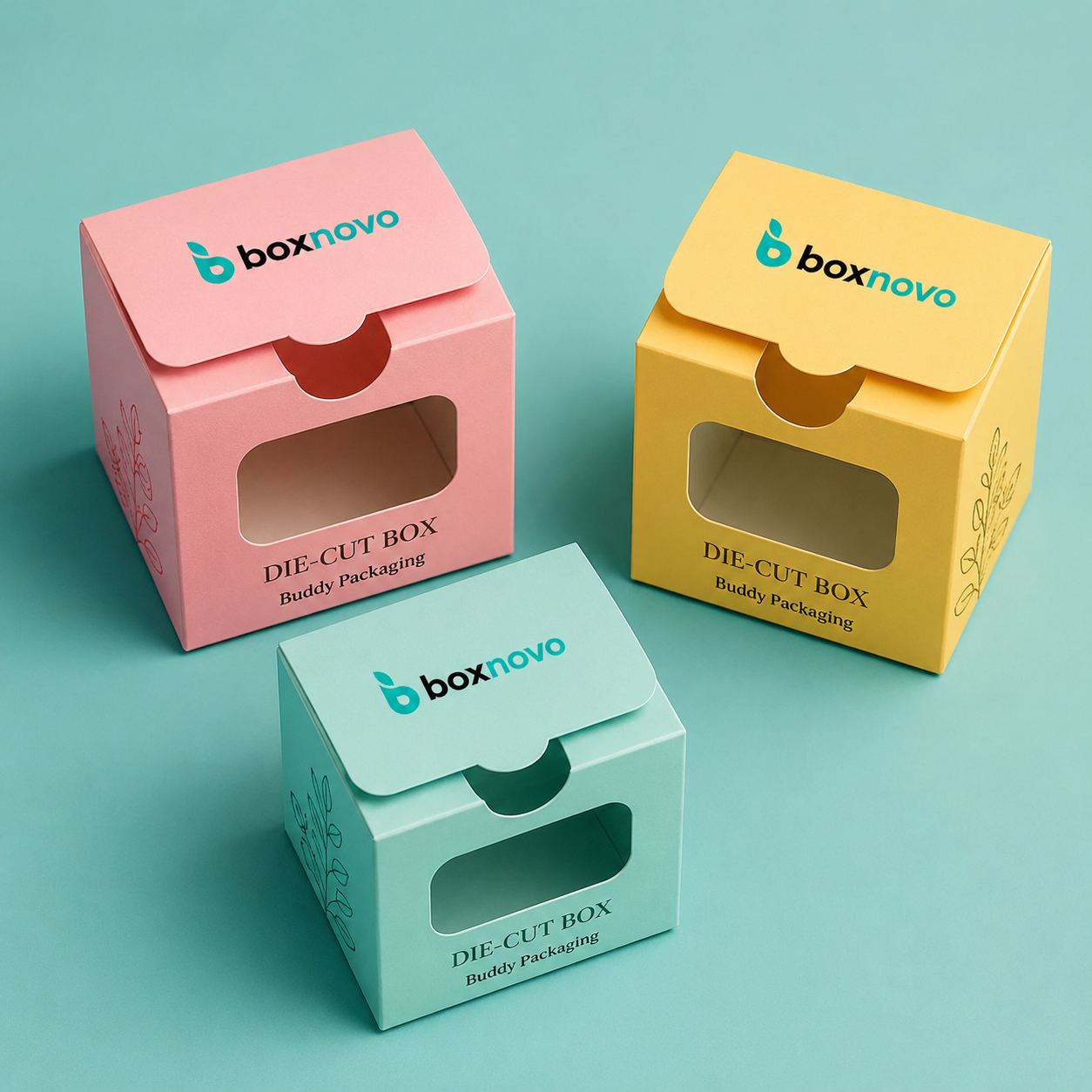

- Windows: any shape, from a simple rectangle to a logo or product outline, with or without clear film.
- Handles: cut into the top panel so the box carries like a bag.
- Locking tabs and slots: lids and bases that lock shut without tape or glue.
- Hang holes and tabs: euro slots or round holes for peg hooks in retail.
- Tear strips and perforations: easy opening for mailers and display boxes.
- Vents: small holes for products that need airflow.
- Fitted inserts: die cut cradles and dividers that hold each item in place, the same idea as box partition inserts.
A die cut insert can replace loose fill, keep products from moving and make the opening feel more considered. Die cut designs reduce empty space, so fragile or high-value products should still be tested before launch (Racklify).
Materials for Die Cut Packaging
| Material | Characteristics | Best For |
|---|---|---|
| White SBS paperboard | Bright white surface for sharp, full color printing | Cosmetics, retail cartons, window boxes |
| Kraft paperboard | Natural brown look, strong fibers | Eco-focused brands, food and gift boxes |
| Recycled board | Grey back, made from recycled fiber | Cost-conscious retail packaging |
| E-flute corrugated | Thin flute, strong for its weight, prints well | Die cut mailer boxes and heavier retail boxes |
| B-flute corrugated | Thicker flute with more cushioning | Shipping, larger and heavier products |
Folding carton board suits high-quality printing and lighter products, while corrugated board suits heavier items. Die cut cardboard boxes in E-flute are a common middle ground for mailers that need both print quality and strength. Compare paperboard packaging materials, corrugated board options and kraft packaging materials, or read the full packaging material types guide.
Printing and Finishes
Custom printed die cut boxes can carry artwork on every panel, including the inside. Because the box is printed flat before cutting, artwork must be set up on the dieline, with bleed past every cut line.
- Color: full color CMYK for photos and gradients, or Pantone (PMS) inks for exact brand colors. The CMYK color converter helps you check values.
- Inside printing: a pattern or message revealed when the box opens.
- Finishes: matte, gloss or soft touch lamination; spot UV; foil stamping and holographic foil; embossing and debossing.
- File setup: keep text inside the safe zone and away from folds. This guide to bleed and safe zones shows how.
Custom Die Cut Boxes vs Standard Boxes
| Factor | Custom Die Cut Box | Standard Slotted Box |
|---|---|---|
| Fit | Shaped around the product, often with an insert | Fixed rectangular shape; may need void fill |
| Closure | Tabs and locks, often no tape needed | Usually taped |
| Presentation | Windows, handles, shaped panels, full print | Plain or simple print |
| Tooling | One-time cutting die per design | Usually no special die |
| Best use | Retail, gifting, unboxing and brand presentation | High-volume transit and outer shipping cartons |
Many brands use both: a custom die cut box for the product the customer sees, and a standard corrugated shipping box for transit.
How to Design a Custom Die Cut Box
- Measure the product at its widest points, including any parts that stick out. Use the box size calculator or this guide to choosing custom box sizes.
- Choose a base structure: mailer, tuck end, lock bottom, pillow, gable or a fully custom shape.
- Add the die cut features you need: window, handle, locks, hang tab, insert.
- Get the dieline for your exact size and style, with every panel labeled.
- Preview and prototype: check the design in the 3D packaging mockup generator, then test a physical sample with the real product before the die is finalized.
- Place artwork on the dieline and approve the final proof.
Industries That Use Die Cut Boxes
| Industry | Typical Die Cut Setup |
|---|---|
| Bakery and treats | Window and handle boxes for cupcakes, macarons and cookies; see custom bakery boxes |
| Cosmetics and skincare | Window cartons and inserts for bottles and jars; see cosmetic box packaging |
| E-commerce and subscriptions | Printed die cut mailers with inserts and tear strips |
| Retail and electronics | Lock bottom cartons with hang tabs and windows |
| Gifts, events and promotions | Pillow, gable, hexagon and custom-shaped boxes |
| Candles and home fragrance | Window and insert boxes for jars |
Why Order Custom Die Cut Boxes From BoxNovo?
- Structure first: we build the dieline around your product, not around a stock box.
- Any shape and feature: windows, handles, locks, inserts and custom outlines in one design.
- Preview before you commit: dielines, a 3D preview and samples before production.
- Repeat orders made easy: your cutting die is reused, so reorders match the first run.
- Clear pricing: get a starting range with the instant price range tool, then an exact quote for your size, board, print and quantity.
- Wholesale quantities: die cut boxes wholesale for brands, retailers and distributors.
How to Order Custom Die Cut Boxes
- Share your product size and a photo or sample if the shape is unusual.
- Describe the structure: a style from this page, a reference box or your own sketch.
- Choose board, print and finishes.
- Review the dieline and 3D proof, and a sample if needed.
- Approve artwork for production.
- Receive your boxes flat, ready to fold and pack.
Frequently Asked Questions
What are custom die cut boxes?
Boxes cut from flat board with a custom die that shapes the outline, scores the folds and adds features such as windows, handles and locking tabs, then printed with your design.
What is the difference between die cut and regular boxes?
Die cut boxes are shaped to the product with custom cuts, locks and windows. Standard slotted boxes have a fixed rectangular shape and are usually taped shut.
What is a dieline?
A flat drawing of the box showing cut lines, fold lines and glue areas. The cutting die and your artwork are both built on it.
Is there a cost for the cutting die?
Most die cut designs need a one-time cutting die. Its cost depends on the size and detail of the design, and the same die is reused for repeat orders.
Can I order a sample before the full run?
Yes. A prototype or sample lets you check the fit and folds with your real product before production.
What materials are used for die cut boxes?
White SBS paperboard, kraft paperboard, recycled board, and E-flute or B-flute corrugated board.
Are die cut cardboard boxes strong enough for shipping?
Corrugated die cut mailers are made for shipping. Paperboard die cut boxes are for retail and presentation and usually go inside a shipping box.
Do die cut boxes need tape or glue?
Many styles lock with tabs and slots and need no tape. Some, such as lock bottom cartons, are glued at the factory and arrive flat.
Can die cut boxes have windows?
Yes. Windows can be any shape, from a rectangle to a logo outline, with or without clear film.
Can you make custom shaped boxes?
Yes. Hexagon, house-shaped, pillow and fully custom outlines are all made with a custom die.
Can die cut boxes include inserts?
Yes. Die cut inserts and dividers hold each item in place inside the box.
Can die cut boxes be printed inside?
Yes. Inside printing adds a message or pattern that customers see when they open the box.
Do you offer die cut boxes wholesale?
Yes. BoxNovo produces custom die cut boxes in wholesale quantities for brands, retailers and distributors.
What files do I need for printing?
Vector artwork such as AI or PDF, placed on the dieline with bleed past the cut lines and text inside the safe zone.
Get a Quote for Custom Die Cut Boxes
Send us your product size, the structure you have in mind and your artwork, and we will build the dieline and price your custom die cut boxes. Request a custom quote or use the quote form on this page.
